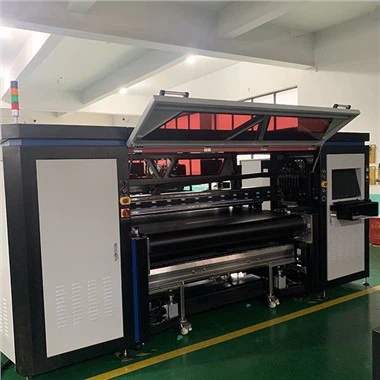

Digital Printing On Natural Fabrics

The white ink direct printing process currently has two processes: dry printing and wet printing, and the transfer printing process will be added in the future, but each process has its own special fabrics, which should be selected according to the characteristics of your own products. Choose...
A szálláslekérdezés elküldése
A termék bemutatása

The white ink direct printing process currently has two processes: dry printing and wet printing, and the transfer printing process will be added in the future, but each process has its own special fabrics, which should be selected according to the characteristics of your own products. Choose white ink process equipment, Analyze from the following points:
1. Select the nozzle used for white ink, this is the most important thing, white ink precipitation is a normal phenomenon, so the requirements for the nozzle are very high, there must be circulation inside the nozzle, and the equipment must have ink circulation. If there are no these two points, the stability of the equipment Sex is not guaranteed.
2. Choose the right process. The biggest difference between wet beating and dry beating is the hand feel of the product, and the wet beating product feels softer. However, the pressing process of dry-beating products is more delicate, and the fastness of wet-beating corresponding to light silicone oil fabrics is better.
3. Look at the overall plan of equipment matching, the integration of white ink and color ink, the cooperation of software and hardware, and the long-term stability of equipment production.





Product mode

YSR1816

Print head

8pcs Ricoh Gen6 print head

Fabric conveyance mode

Adhesive belt with cleaning and heating system

Maximum medium width

1850mm

Production speed

Gen5 E

2 pass:330m2/h

Print software

Neostampa / Texprint

Ink Type

reactive , disperse or acid ink,pigment(8 color)

Power voltage

380V,3L+N+G(with independent reliable effective earth wire)

Power consumption

printer 15kw, electric dyer 20kw(steam dryer 4kw)

Workshop condition

Temperature:20-30℃,humidity:55-65%

Measurement(with wooden case)

Printer

4700*2200*1950mm (L* W* H)

Dryer

2300*2200*1950mm (L* W* H)

Weight

G.W:4800kg N.W.:4200KG
